1. Beyond the Eyeball: The Science of Exposure Calibration

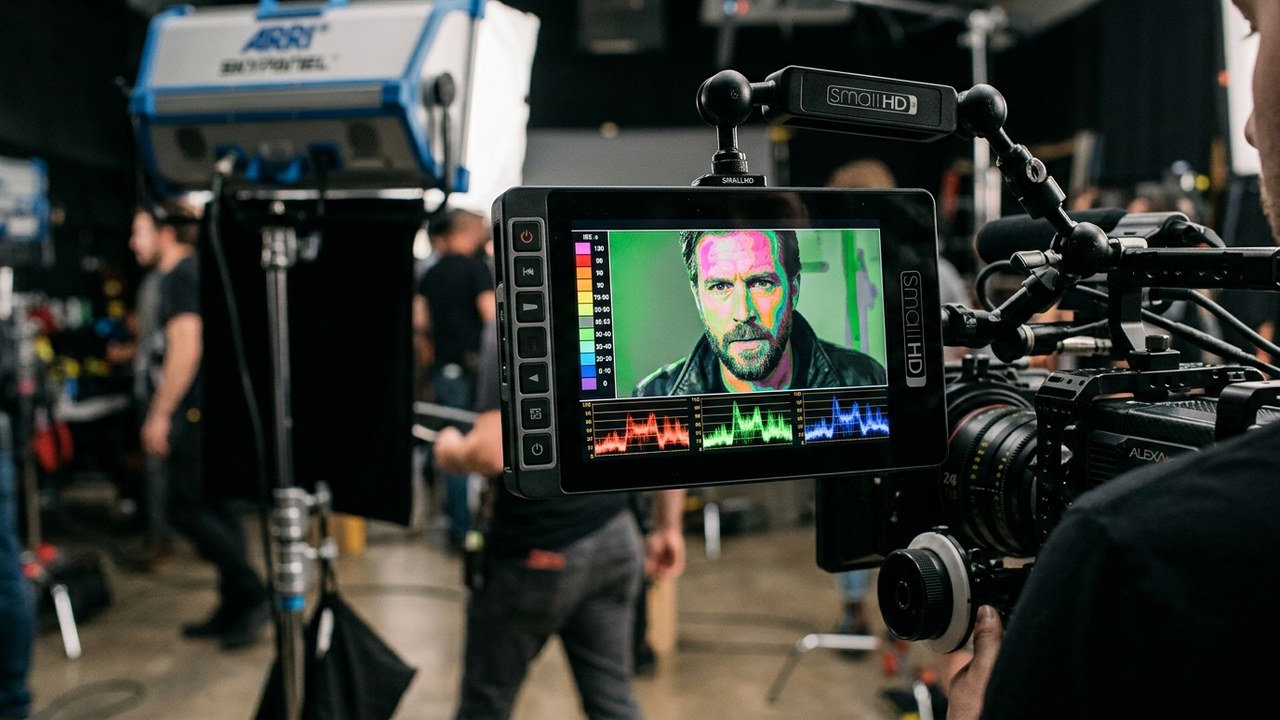

Evaluating digital exposure by looking at an LCD screen is one of the most perilous practices on a professional film set. Ambient sunlight, screen backlights, and viewing angles corrupt human perception. High-end cinematographers rely on objective exposure monitoring instruments: Waveform Monitors and calibrated 16-Step False Color Maps.
False color translates the continuous luminance values of an optical scene into distinct, color-coded IRE zones. By mapping middle gray, skin tones, and highlight clipping thresholds to standardized colors, a DP can evaluate exposure latitude in less than a second.
2. The 16-Step False Color IRE Zone Master Chart
While proprietary false color scales vary slightly between manufacturers (ARRI, SmallHD, RED, Atomos), the industry follows the standardized IRE zone distribution:
| False Color Band | IRE Signal Range | Scene Element Mapped | Exposure Action Required |
|---|---|---|---|
| Purple | 0.0 - 2.0 IRE | Pure Sensor Black Clip | Shadows crushed; zero detail recovery |
| Blue | 2.1 - 10.0 IRE | Deep Shadows / Toe | Rich black floor; acceptable noise limit |
| Cyan | 10.1 - 25.0 IRE | Dark Shadow Fill & Hair Tones | Clean shadow detail above noise floor |
| Green | 38.0 - 42.0 IRE | 18% Middle Gray (Neutral Anchor) | Calibrated baseline exposure point |
| Pink | 52.0 - 58.0 IRE | Caucasian / Fair Skin Tone Key | Optimal key light exposure for portraits |
| Straw / Medium Gray | 68.0 - 78.0 IRE | Hot Skin Tones / Light Backgrounds | Upper boundary of natural skin highlights |
| Yellow | 85.0 - 92.0 IRE | White Clouds / Bright Practical Lights | Highlight compression shoulder |
| Red | 98.0 - 100.0+ IRE | Hard Specular Clipping | Severe blown highlights; channel data clipped |
Place an 18% gray card in the subject's key light. Adjust iris until the card glows solid green (38-42 IRE). Once locked, skin highlights will naturally fall into safe pink and amber zones without clipping.
3. Reading the RGB Waveform: Graticules, IRE & Parade
While false color provides spatial analysis across the image frame, the RGB Parade Waveform isolates color channel saturation across the horizontal axis:
- White Balance Confirmation: In a neutral scene, gray cards and white surfaces will show identical Red, Green, and Blue traces aligning horizontally on the graticule.
- Sub-Channel Clipping Detection: Often in digital video, an actor lit by strong red theatrical gel will clip the Red channel (reaching 100 IRE) while Green and Blue remain at 40 IRE, producing unsightly plasticky skin patches.
4. Skin Tone Exposure Latitude Across Diverse Complexions
A critical mistake on modern film sets is assuming all human skin reflects 18% gray. In reality, human skin tones span a broad reflectance latitude:
- Deep / Dark Skin Tones: 25% to 35% IRE (Cyan to Medium Gray band on false color). Exposing deeper skin at 55 IRE artificially overexposes facial contours and destroys specular contrast.
- Medium / Olive Skin Tones: 42% to 48% IRE (Green to light Amber).
- Fair / Pale Skin Tones: 52% to 58% IRE (Pink band on SmallHD/ARRI monitoring).
5. Field Practice: Applying Monitoring LUTs Prior to False Color
Ensure your monitor evaluates false color either on the raw camera log signal or through a standardized technical Rec.709 LUT:
- If false color is applied after a high-contrast creative LUT, middle gray bands may skew toward shadow ranges, inducing accidental overexposure.
- Always verify whether your field monitor (SmallHD PageOS, AtomOS, Blackmagic Video Assist) evaluates false color pre-LUT or post-LUT in system settings.
